ProPhoto gives you several ways to add an image within your page layouts:
- graphic module - one or more images/tiles in a horizontal strip, explained below
- Featured image module - one image that is applied dynamically from the featured image set in each WordPress page/post
- Background image - one image applied behind part of your layout (can also use a featured image)
Take a closer look at how to work with the graphic module in this guide so you can insert individual graphics, create rows of graphics, and even make buttons which can link to different pages on your site or other sites like social media profiles:
Add a graphic module to your layout
To add the graphic module in your layout, follow these steps:
- Edit your layout in the visual builder. Unlock the block where you want to add the WordPress content if it is not already unlocked for editing.

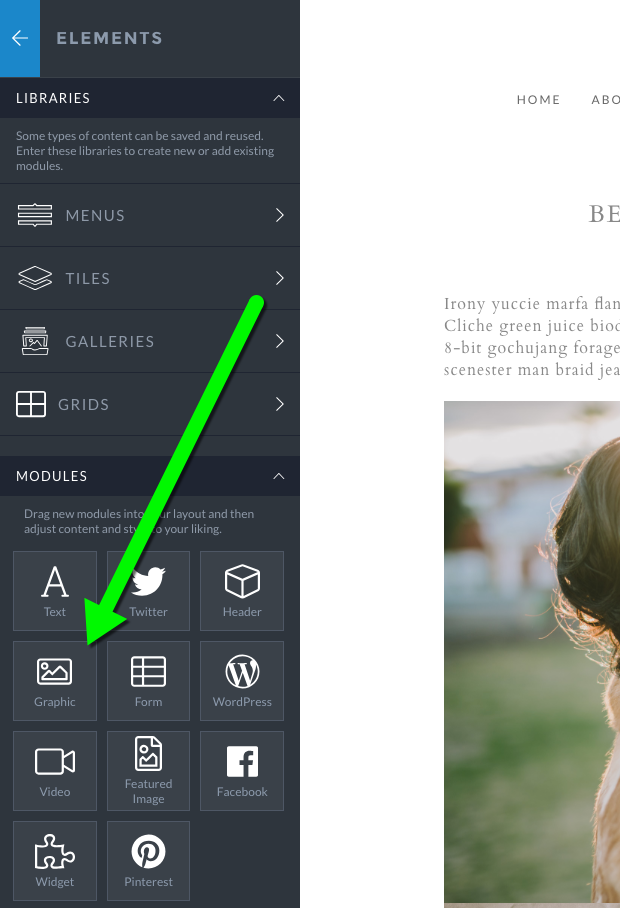

- Click to access the Elements > Modules area in your sidebar and locate the “Graphic” module.
- Click to drag the module into your layout, and release to place it.
- In the popup, click Add Graphic and select to use a tile design or an image. Set up the settings for each graphic you want to use.

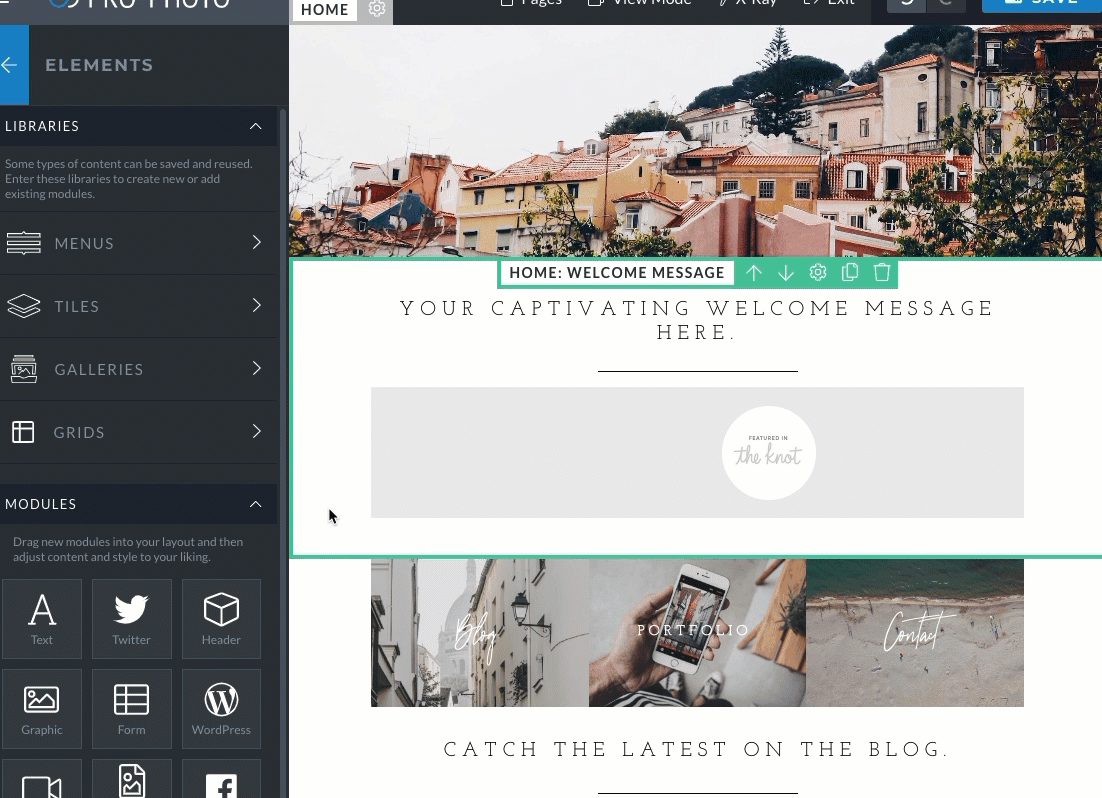

The module allows you to upload an image, choose an existing image from your WordPress media library, or choose a tile design created in ProPhoto. Here is an example of a graphic module added in a column, using a single graphic image:

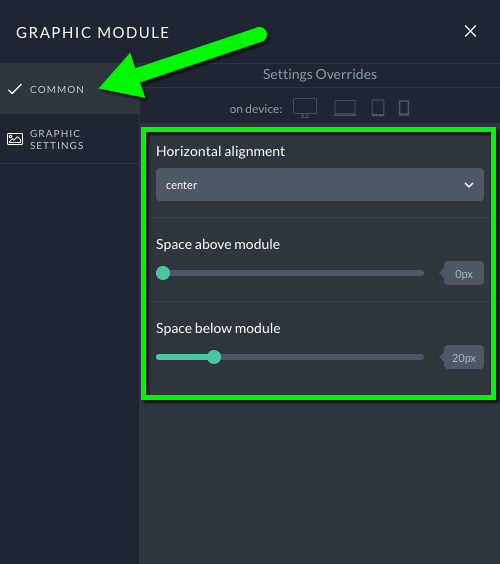

Note that you can chose the alignment of your graphic module in the Common tab in the popup, allowing you to align your graphic module left, center, or right as well as control spacing added above & below the module:
Size considerations
- images or tiles used in a graphic module will display no larger than 100% resolution (width/height in pixels)
- images or tiles will shrink to fit the width of the area where they are placed, so your layout may need to use spacing, padding, max row width, or column width controls to prevent graphic modules from displaying too tall/large in the layout

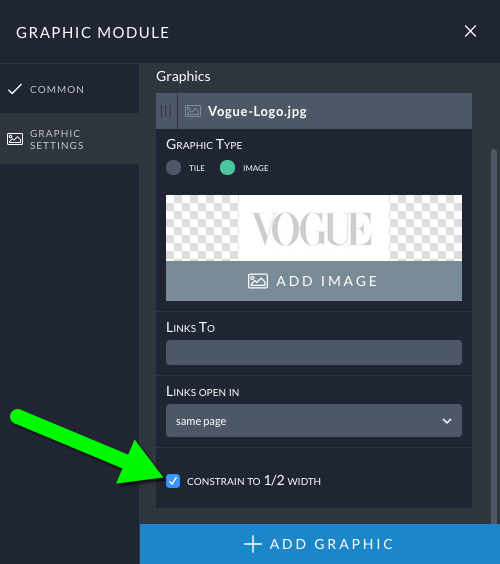

- images (and tile image layers) can constrain to 1/2 width to improve their appearance on high-density screens like Apple Retina displays and other modern devices, seen in this example:
Learn more about creating tile designs which can include multiple layers of text, images, shapes, and even hover/animation effects by reading our separate guide: Tiles
Link graphic module items to web pages
To link a graphic module item to a page or URL, add or edit a graphic module in your layout. (see above). From the Graphic module settings panel, find the "Links To" setting for the graphic (click the graphic bar to show settings if they are hidden). The link selector allows you to link to:
- Your site's home page
- Your site's blog page
- A created Page on your site (selected from the "page" dropdown)
- A ProPhoto Gallery on your site (selected from "gallery" dropdown)
- A custom link using a website URL address. It is important that custom links are provided as complete URLs with the
https://
orhttp://
included at the beginning. - When selecting "Link To" options 1-4 above, you'll also have an option to "Link to a specific Block/Row". With this checked, the settings panel will display a visual representation of the blocks and rows on the page selected in the "Link To" setting. Selecting a block or row will causing the browser to scroll to that section of the layout when a visitor clicks on that link. See our linking to specific layout items article for more info.
Use multiple graphics in one module
You can use one image per graphic module, but you can also create a horizontal row of graphics by using more than one image or tile in a single module. To add multiple items in a graphic module in your layout, follow these steps:
- Add or edit a graphic module in your layout. (see above)
- Click Add Graphic in the module popup for each tile/image you wish to use.
- Set up each tile/image with the settings you want, repeating as many times as necessary for your strip of graphics.

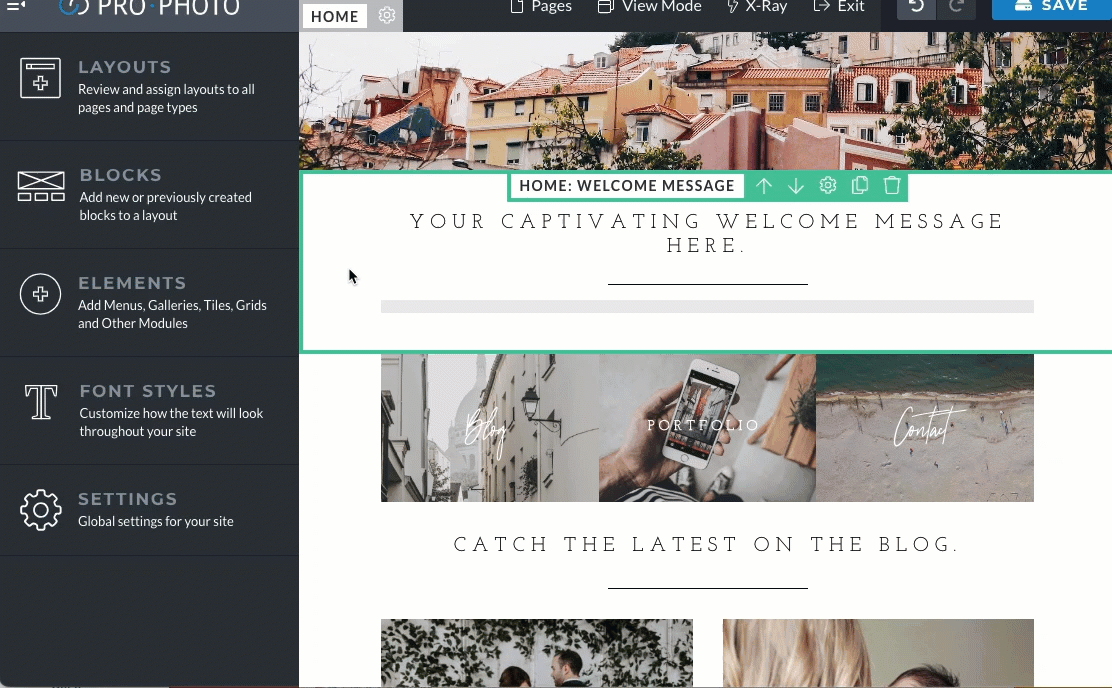

Each graphic you select will appear in a horizontal strip which automatically scales to fit the area. Use the slider control to change gap between the graphics. See this example which shows how to add multiple graphics to one module, and shows how wrap/stack behavior differs from individual graphic modules inserted into separate columns:
As you can see, graphics in one module never wrap onto additional lines, but stay in one horizontal group. If you want images which stack on smaller screens, split up your images into separate columns with separate graphic modules as needed.
